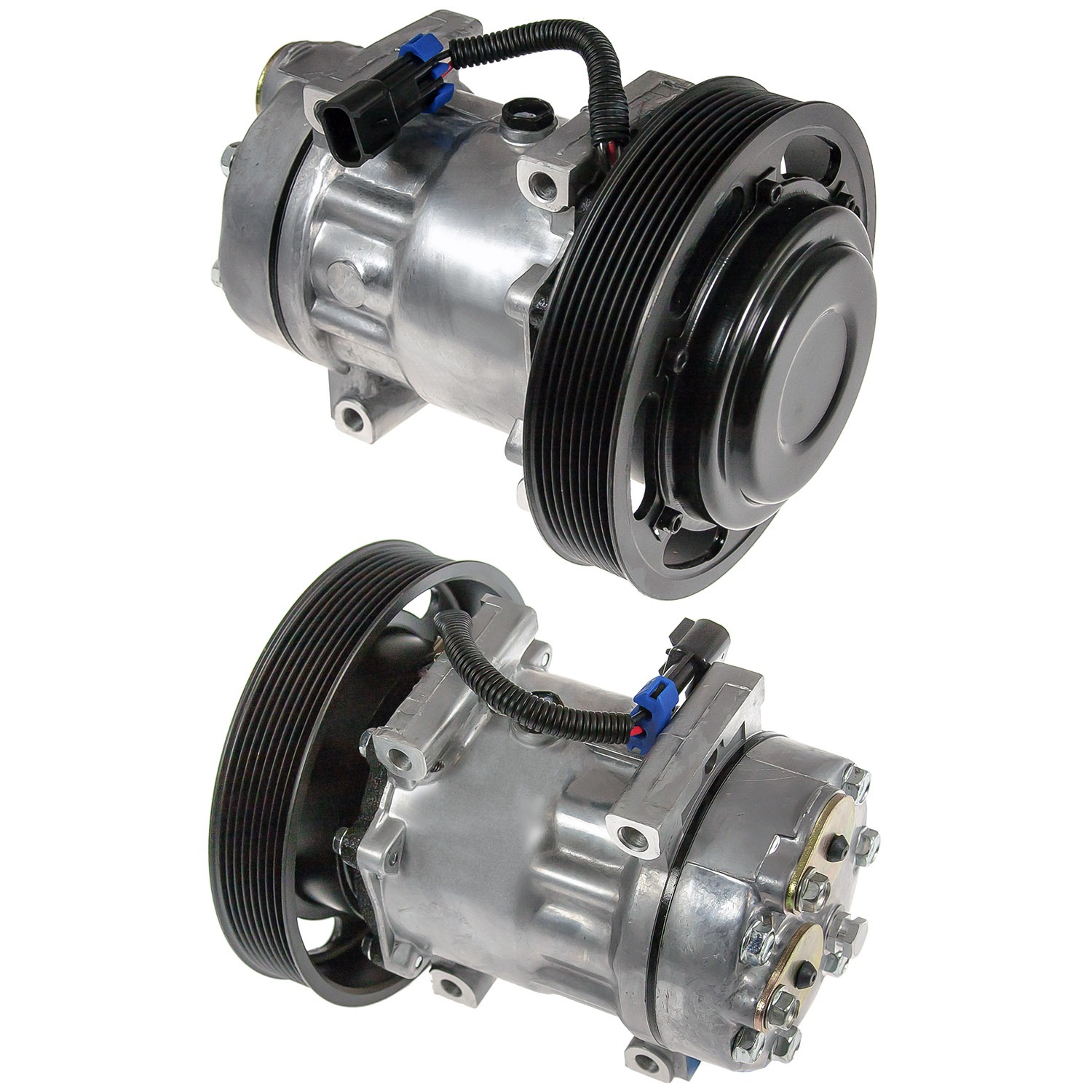

Mack/Volvo A/C Compressor Replaces OEM: 20721587

Description

Mack/Volvo A/C Compressor Replaces OEM: 20721587 or 206RD53M

• Application: Mack/Volvo
• Description: QCC AFT SHD Comp 8 gr 176mm
• Volts: 12v
• Clutch Diameter: 180mm
• Number of Grooves: 8 grooves
• Belt Type: Serpentine
• No. Comp Cylinders: 7 cyl
• Comp Displacement: 9.5 cu.in.
• Fitting Port Position: Horizontal
• Fitting Style: Rear Pad O-Ring, Volvo Off-Set Top-Left
• Head Type: WV
• Wire Type: 2 wire female packard #15300002
• Replacement Clutch Assy: NSS
• Replacement Head Assy: 50011
• Oil Type: PAG100
• Refrigerant Type: R134a
• Rotation: CW
• O-Ring #1: 0124
• O-Ring #2: 0129
• Shaft Type: Long Key Shaft

Reference Numbers

20721587, 206RD53M, 20-04326-AM

DO NOT POWER PROBE THE COMPRESSOR CLUTCH. YOU WILL BLOW OUT THE DIODE, AND THEN THE CLUTCH WON’T WORK, AND THE WARRANTY WILL BE VOID A/C COMPRESSOR
