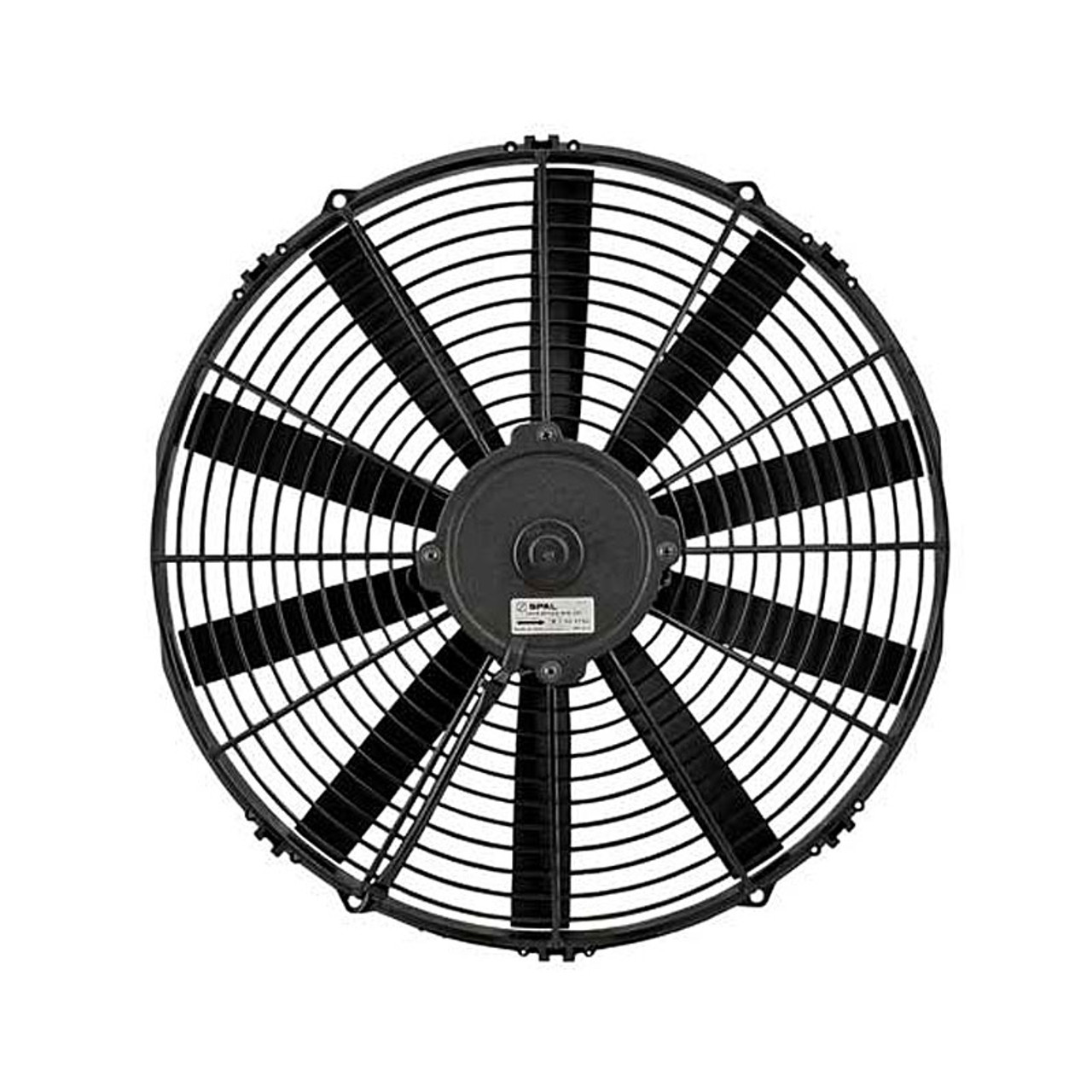

Multi-Fit Electric Cooling Fan Replaces OEM: VA10-BP9/C-25A

Description

Multi-Fit Electric Cooling Fan Replaces OEM: VA10-BP9/C-25A

• Description: Electric Cooling Fan Assembly
• Application: Multi Fit Applications
• Manufacturer: Spal
• Manufacturer #: VA10-BP9/C-25A
• Type: Puller Fan (Suction)
• Volts: 24V
• Industry Size: 13″
• Overall Diameter: 12.64″
• Fan Blade Diameter: 12.01″
• Width: 2.05″
• Mounting Hole Distance (upper to lower): 11.48″
• Mounting Hole Distance (upper L to lower R): 6.61″
• Mounting Type: Strap or bracket
• Rotation: CCW
• Airflow CFM: 861
• Additional Notes: 3.5 amps@24V

Reference Numbers

3565, 141-1040, 1099082, 3010.035, 06-3565, VA10-BP9/C-25A
