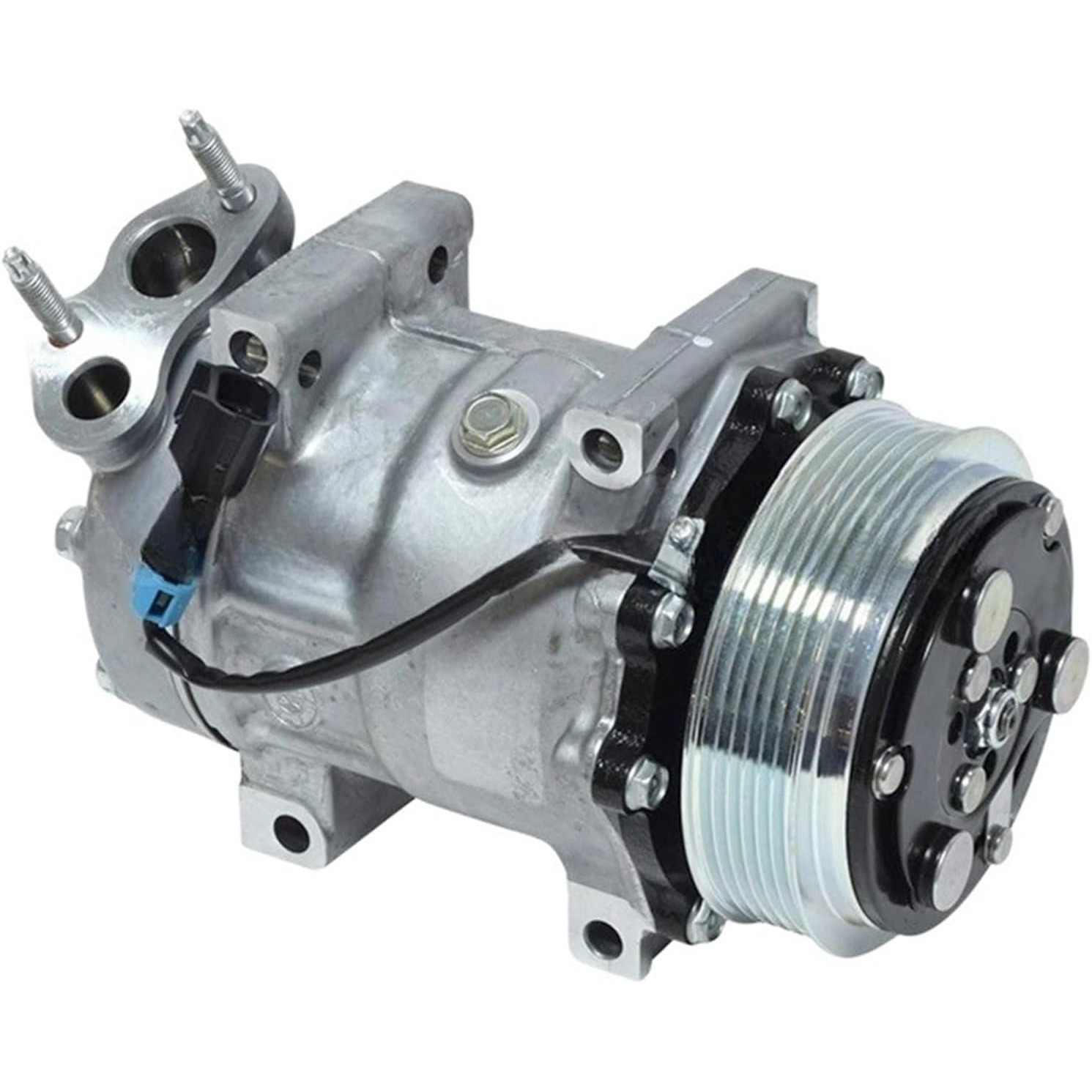

Navistar Sanden Compressor Replaces OEM: 3863068C4

Description

Navistar Sanden Compressor Replaces OEM: 3863068C4

• Make: Sanden
• Manufacturer Number: 4585
• Application: Navistar Trucks
• Description: Sanden STD Comp 6 gr 119mm
• Volts: 12V
• Clutch Diameter: 119mm
• Number of Grooves: 6 groove
• Belt Type: Serpentine
• Number of Cylinders: 7 cyl.
• Comp Displacement: 13 cu. in.
• Factory Oil Charge: 300 cc Oil
• Fitting Port Position: Top
• Fitting Style: Navistar Special Year Pad
• Head Type: 4347
• Replacement Clutch Assy: NSS
• Replacement Head Assy: NSS
• Model: SD7H15E
• Oil Type: PAG100
• Refrigerant Type: R134a
• O-Ring #1: 0155
• O-Ring #2: 0156

DO NOT POWER PROBE THE COMPRESSOR CLUTCH. YOU WILL BLOW OUT THE DIODE AND THEN THE CLUTCH WON’T WORK AND THE WARRANTY WILL BE VOID A/C COMPRESSOR
