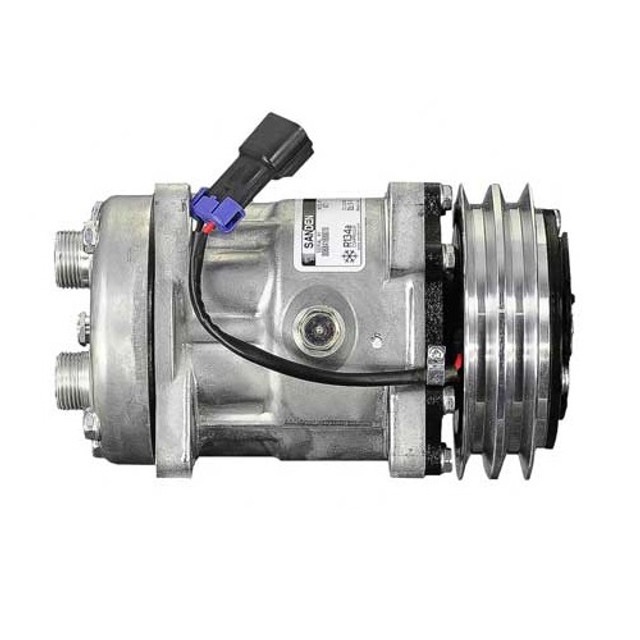

Sanden Compressor for Freightliner SANDEN #: 4471 Replaces OEM: ABPN83-304073

Description

Sanden Compressor for Freightliner SANDEN #: 4471 Replaces OEM: ABPN83-304073

Make: Sanden
Manufacturer: Sanden
Manufacturer #: 4471
Application: Freightliner Trucks
Description: Sanden STD Comp 2 gr 132mm
Volts: 12V
Other OE Sanden #: 4735
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MDA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 5116 see note
Replacement Head Assy: 5632A
Model: SD7H15HD
Oil Type: PAG100
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 0015
Shaft Type: Long Key Shaft
Notes: OE has diode, Reuse Harness
Diode Protection: w/diode

DO NOT POWER PROBE THE COMPRESSOR CLUTCH. YOU WILL BLOW OUT THE DIODE AND THEN THE CLUTCH WON’T WORK AND THE WARRANTY WILL BE VOID A/C COMPRESSOR
