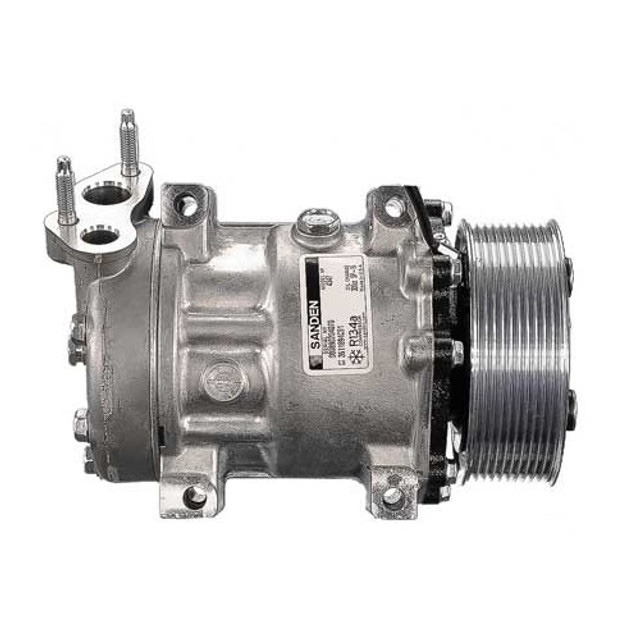

Sanden Compressor for Navistar SANDEN #: 4347 OEM: 3611894-C91

Description

Sanden Compressor for Navistar SANDEN #: 4347 OEM: 3611894-C91

Make: Sanden
Manufacturer: Sanden
Manufacturer #: 4347
Application: Navistar Trucks
Description: Sanden STD Comp 10 gr 119mm
Additional Description: Enhanced Version
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Navistar Special Pad
Head Type: 4347
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 50412
Replacement Head Assy: NSS
Model: SD7H15E
Oil Type: PAG100
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 0155
O-Ring #2: 0156
Shaft Type: Long Key Shaft
Diode Protection: w/diode

DO NOT POWER PROBE THE COMPRESSOR CLUTCH YOU WILL BLOW OUT THE DIODE AND THEN THE CLUTCH WON’T WORK AND THE WARRANTY WILL BE VOID A/C COMPRESSOR
