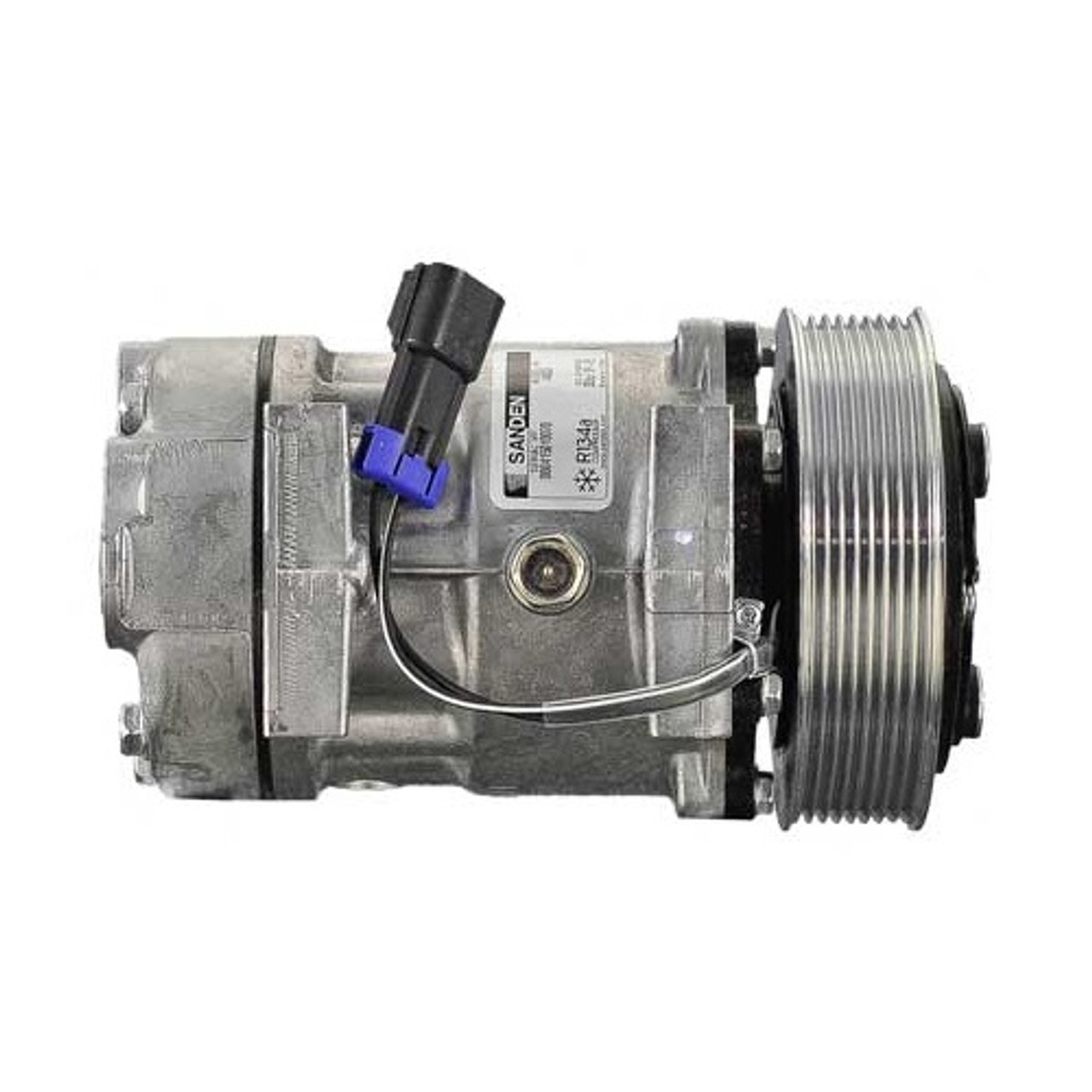

Sanden Compressor for Volvo SANDEN #: 4493 or 4733 Replaces OEM: 20388777

Description

Sanden Compressor for Volvo SANDEN #: 4493 or 4733 Replaces OEM: 20388777.

Make: Sanden
Manufacturer: Sanden
Manufacturer #: 4493
Application: Volvo Trucks
Description: Sanden STD Comp 8 gr 130mm
Volts: 12V
Other OE Sanden #: 4733
Additional OE Sanden #: 4892
Clutch Diameter: 130mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Dis
Head Type: WV
Wire Type: 2 Wire Metripack with Diode
Replacement Clutch Assy.: 5165
Replacement Head Assy: 50011
Model: SD7H15HD
Oil Type: PAG100
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 0124
O-Ring #2: 0129
Shaft Type: Long Key Shaft
Diode Protection: w/diode

Reference Numbers

SN4493, 20388777, 5385, U5385, 1401362, 75R-81362, RD5-11256-0, 75R81362, RD5112560, 4493, 4733, U4493, U4733, 20357157, 203757157, 20388777, 20388778, 20501067, 8080569, 5385

DO NOT POWER PROBE THE COMPRESSOR CLUTCH YOU WILL BLOW OUT THE DIODE AND THEN THE CLUTCH WON’T WORK AND THE WARRANTY WILL BE VOID A/C COMPRESSOR
