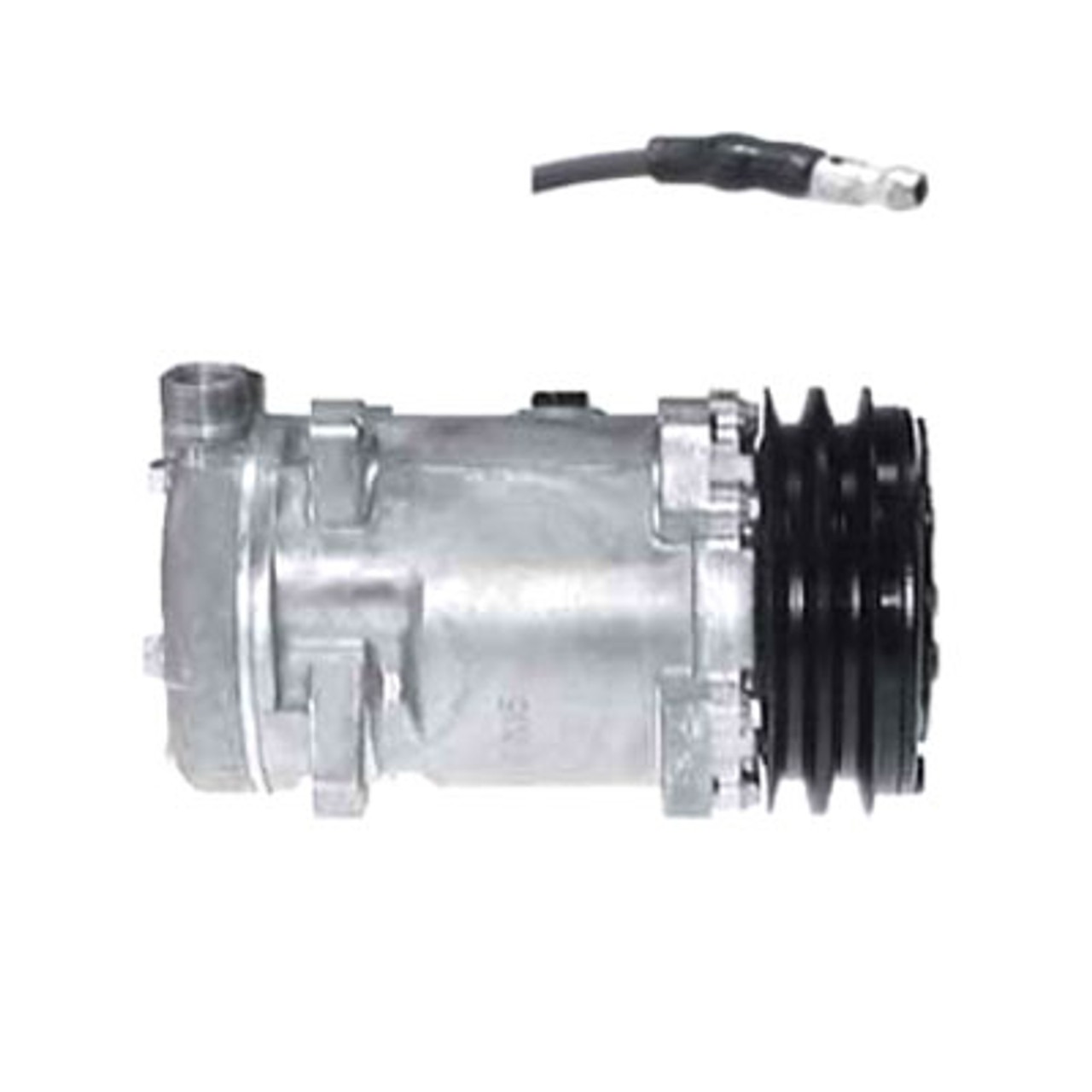

Sanden Compressor OEM: 4643

Description

Sanden Compressor OEM: 4643

• Application: Multi Fit Applications
• Volts: 12V
• Clutch Diameter: 132mm
• No. of Grooves: 2 groove
• Belt Type: Two 1/2” Belts
• No. Comp. Cylinders: 7 cyl
• Comp. Displacement (ci): 9.5 cu.in.
• Factory Oil Charge: 240cc Oil
• Fitting Port Position: Vertical
• Fitting Style: Tube-O 1 x 14
• Head Type: CB
• Wire Type: 1 Wire Male Bullet
• Replacement Clutch Assembly: 5064
• Replacement Head Assembly: 5627
• Model: SD7H15HD
• Mounting Type: Ear 8 Long
• Oil Type: PAG100
• Refrigerant Type: R134a
• Rotation: CW
• O-Ring #1: 0015
• Shaft Type: Long Key Shaft
• Diode Protection: None

Reference Numbers

5725, 4643

DO NOT POWER PROBE THE COMPRESSOR CLUTCH. YOU WILL BLOW OUT THE DIODE AND THEN THE CLUTCH WON’T WORK AND THE WARRANTY WILL BE VOID A/C COMPRESSOR.
