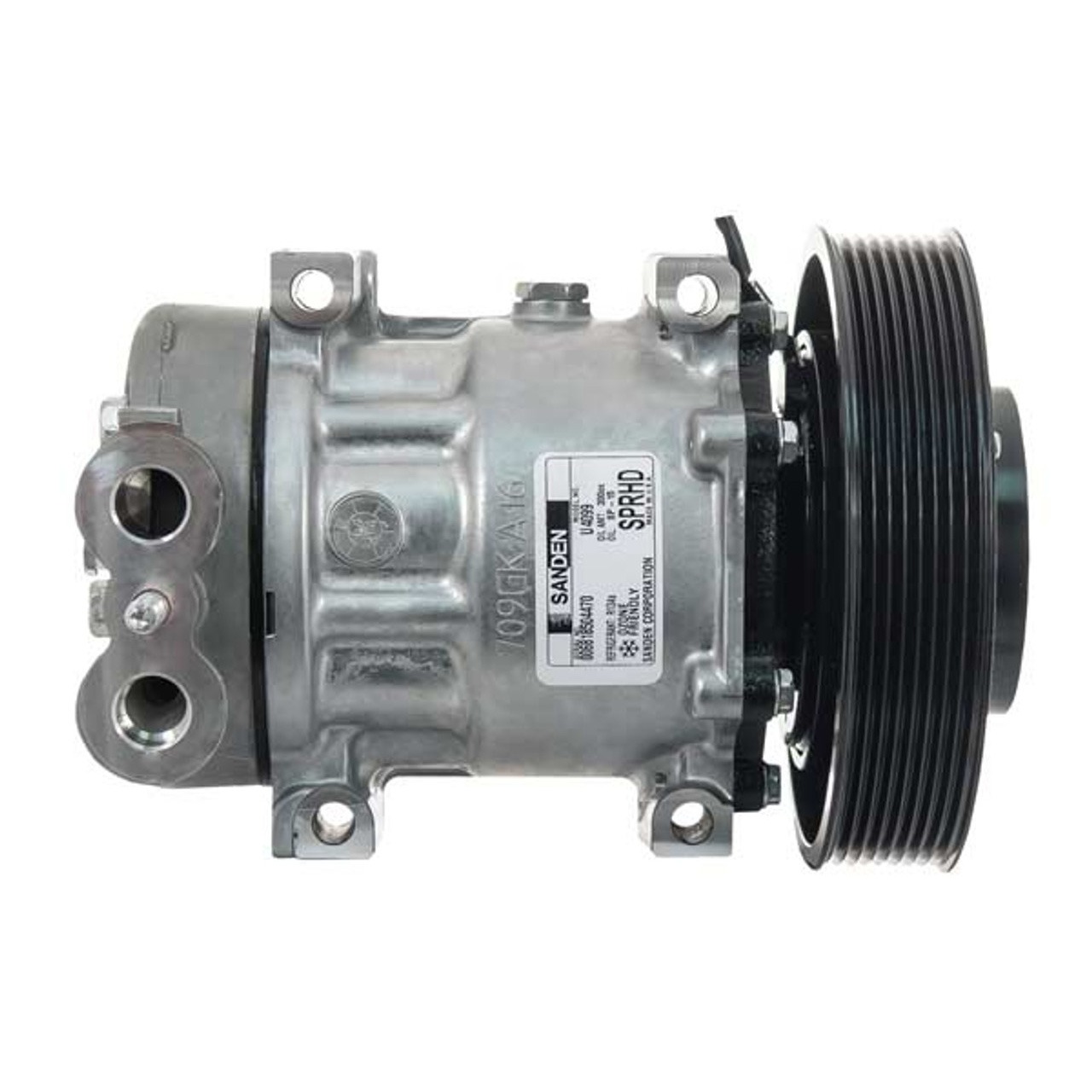

Sanden Compressor SANDEN #: 4099 OEM: 4099

Description

Sanden Compressor SANDEN #: 4099 OEM: 4099

Make: Sanden
Manufacturer: Sanden
Manufacturer #: 4099
Application: Universal application
Description: Sanden SHD Comp 8 gr 160mm
Additional Description: Super Heavy Duty – OEM
Volts: 12V
Clutch Diameter: 160mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: PK Pad
Head Type: 4802
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15-Super HD
Oil Type: PAG100
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 0140
Shaft Type: Long Key Shaft
Notes: WILL NOT REPLACE OE DENSO TYPE
Diode Protection: Diode/Thermal Fuse

DO NOT POWER PROBE THE COMPRESSOR CLUTCH YOU WILL BLOW OUT THE DIODE AND THEN THE CLUTCH WON’T WORK AND THE WARRANTY WILL BE VOID A/C COMPRESSOR
