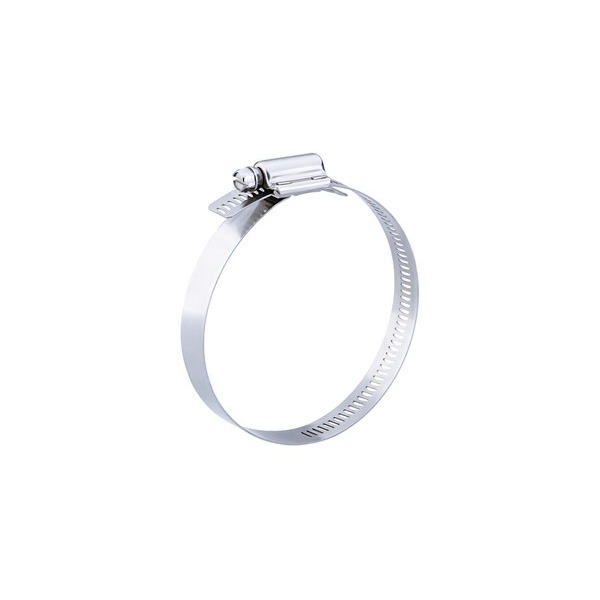

Breeze Hi-Torque Extended HP 5 – 61/8″ – 9 1/8″

Description

Breeze Hi-Torque Extended HP 5 – 61/8″ – 9 1/8″ Range, 5/8″ 304 SS Band

• Used in OEM or other production assembly applications
• Extended range gives clamp multipurpose uses
• Eight screw threads engaged simultaneously for torqueing drive, sealing pressure and vibration resistance

Specs

Band Material: 304 SS
Screw Material: 410 SS
Band Width: 5/8″
Min. Inches: 6 1/8″
Max Inches: 9 1/8″
Min. mm: 156
Max mm: 232
Torque Range: 150 in/lbs
Hex Screw: 5/16″
