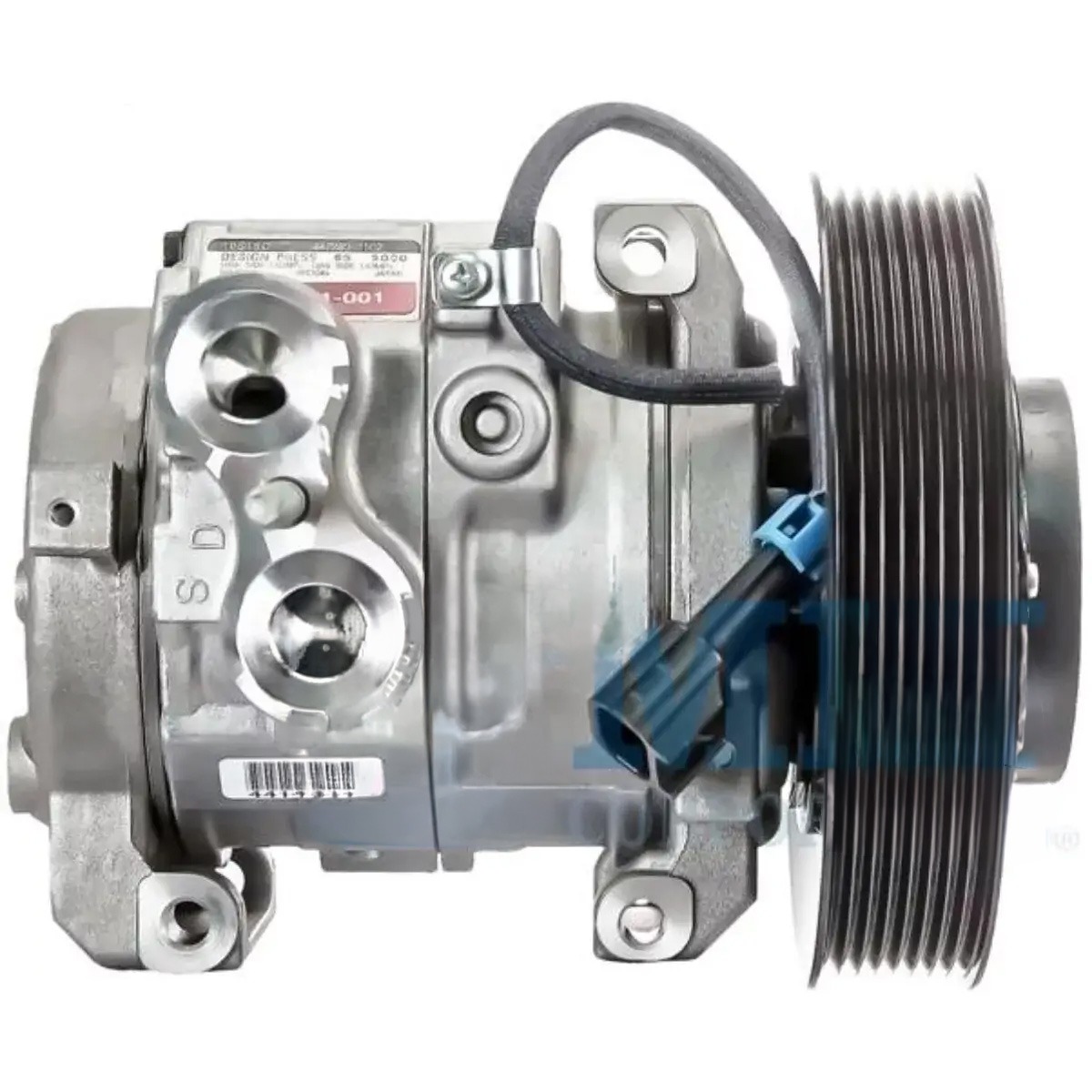

FACTORY DENSO A/C Compressor for Freightliner OE: 22-65771-000 or 22-65771-001

Description

FACTORY DENSO A/C Compressor for Freightliner OE: 22-65771-000 or 22-65771-001. All Compressors need oil; oil is included with the order.

• Make: Denso
• Manufacturer: Denso
• Manufacturer #: 4326
• Application: Freightliner Trucks
• Description: Denso 10S15C 8 gr 163mm 12V
• Volts: 12V
• Clutch Diameter: 163.5mm
• No. of Grooves: 8 groove
• Belt Type: Serpentine
• No. Comp. Cylinders: 10 cyl
• Factory Oil Charge: 130cc Oil
• Fitting Port Position: Top
• Fitting Style: Pad
• Wire Type: 2 Wire harness
• Replacement Clutch Assy.: NSS
• Model: 10S15C
• Oil Type: ND8 PAG46
• Product Name: A/C Compressor w/clutch
• Refrigerant Type: R134a
• O-Ring #1: 0140
• Shaft Type: Splined shaft

Reference Numbers

22-65771-000 50312613 1440002 4472801501 5031261 197372 198372 2265771000 A2265771000 5512852 5512983 6512852 6512983 7512852 7512983 1440002 5405 2022496 2022496AM 140729 140729NEW 140930 140930C 140930NEW CO1062CA C2719 3003681 3003850 2265771000 226577200 A22-65771-001 A2265771001

DO NOT POWER PROBE THE COMPRESSOR CLUTCH YOU WILL BLOW OUT THE DIODE AND THEN THE CLUTCH WON’T WORK AND THE WARRANTY WILL BE VOID A/C COMPRESSOR
